• Thermocouple actuated line interrupter Eco terminals with jumper lead Slow opening No side taps Flow direction straight thru 1/4 in compression 3-1/2 in regulator setting 2-1/2 to 5 in adjustable regulator 1/8 in NPT pressure tap electrical Reducer bushings and blocking pin lp kit

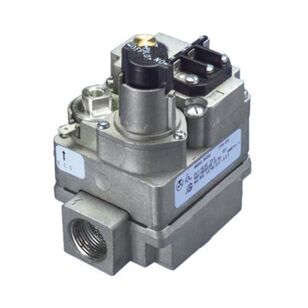

The multi-function gas controls combine into a single package the functions of 3-position gas cock, main gas valve, pressure regulator and 100% shut-off automatic pilot. The pilot gas outlet accepts a 1/4 in pilot line connection. This model features a slow opening main valve that provides a softer ignition and E.C.O. Connections. To permit replacement of a variety of valve sizes, some models are furnished with two reducer bushings (two 3/4 in to 1/2 in). Also included is an E.C.O. Jumper wire that allows this valve to be used on an installation without electrical cut-offs device.
