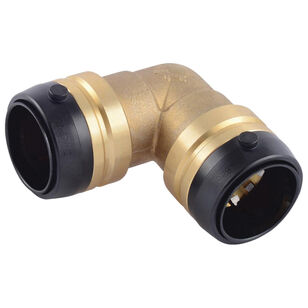

SharkBite™ UXL0235 90 deg Elbow, 1-1/4 in Push-to-Connect x 1-1/4 in Push-to-Connect, Brass
SharkBite™ UXL0235 90 deg Elbow, 1-1/4 in Push-to-Connect x 1-1/4 in Push-to-Connect, Brass
SharkBite™ 90 deg Elbow, 90 deg Elbow Fitting, Connection Size 1: 1-1/4 in, Connection Type 1: Push-to-Connect, Connection Size 2: 1-1/4 in, Connection Type 2: Push-to-Connect, Push-Fit|Push-Fit Connection, Brass, Material Construction: DZR Lead-Free Brass, Finish: Chrome-Plated/Natural Brass, For Use With: Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes, 200 psi, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$50.05 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
ApplicationHydronic Heating and Potable Water Distribution Applications
Color/FinishChrome-Plated/Natural Brass
Connection Size 11-1/4
Connection Size 21-1/4
Connection TypePush-Fit|Push-Fit
Connection Type 1Push-to-Connect
Connection Type 2Push-to-Connect
FinishChrome-Plated/Natural Brass
Fitting Type90 deg Elbow
For use with:Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes
MaterialBrass
Material ConstructionDZR Lead-Free Brass
Pressure Rating200
Temperature Rating200
Warranty25 Year
Shipping Dimensions (L x W x H)17.15" x 13.15" x 11.15"
Additional Information
ANSI/CAN/NSF 61/372|ASSE 1061|ASTM E84/E119|CSA B125.3|cULC S101/S102.2|cUPC/UPC Certified|IAPMO Certified|IPC Listed|UL 263
Features & Benefits
- No special tools, crimping, glue or soldering is needed Can be installed on wet lines Approved for underground and behind the wall applications with no access panels (wrapping required when burying underground) Can be easily removed using a disconnect clip or disconnect tongs (both sold separately) Remove using a disconnect clip or disconnect tongs Large diameter fittings (1-1/4 to 2 in) require a stiffener when connecting to PEX pipe
Marketing Information
Innovative push-to-connect design makes for quick and easy installation when connecting two-pieces of potable water pipe. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
SharkBite™ UXL0235 90 deg Elbow, 1-1/4 in Push-to-Connect x 1-1/4 in Push-to-Connect, Brass
BrandSharkBite™
MFG #UXL0235
Keller #645734
My Part ##
Last Ordered#
$50.05 / ea
