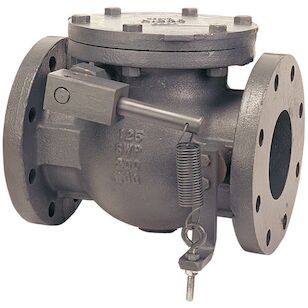

F918BLS 10 W/LEV and SPRING CI
F918BLS 10 W/LEV and SPRING CI
F918BLS 10 W/LEV and SPRING CI
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$22,699.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialCast Iron
All Type Of ItemValve
End ConnectionFlanged
Height16"
IndustryPlumbing
Length24.5"
Made in USATrue
MadetoorderTrue
MaterialCast Iron
Mpg21
Mto Or Ato MaterialsMTO
Nominal Pipe Size10
Nominal Size 110".
Prop 65 WarningYes
Seat Seal MaterialBronze
Size Dimensions10".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeF -- Flanged
Valve Multi Turn Bonnet DesignBolted Bonnet
Valve Pressure Rating Cwp200 PSI/13.8 Bar CWP
Valve Pressure Rating Swp125 PSI/8.6 Bar SWP
Valve Special Optionswith Lever and Spring
Valve Trim PackageBronze Trim
Weight453.63 lbs.
Width20.06"
Features & Benefits
- 125 psi/8.6 bar saturated steam to 353 degreeF/178 degreeC
- 200 psi/13.8 bar non-shock cold working pressure
- Bronze mounted trim
- Bolted bonnet
- Renewable seat and disc
- Class 125 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-71 Type 1
Documents
Marketing Information
The NIBCO cast iron check valve features flanged end connections for easy installation. It is equipped with a bolted bonnet for maintenance accessibility. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves backed by the NIBCO 5-year 125 Percent limited warranty.
F918BLS 10 W/LEV and SPRING CI
BrandNIBCO®
MFG #NHE3S0M
Keller #646536
My Part ##
Last Ordered#
$22,699.00Â /Â ea
