NIBCO®
NIBCO S-413-Y-LF-1-1/2 CXC 200CWP CHK VLV
NIBCO®
NIBCO S-413-Y-LF-1-1/2 CXC 200CWP CHK VLV
MFG #NJ740XC
Item #649271
Mfr. Part #NJ740XC
UPC #039923310095

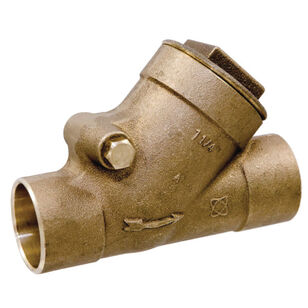

NIBCO® Horizontal Swing Check Valve, S-413-Y-LF Series, 1-1/2 in Nominal, Solder Connection, 200 psi, Pressure Class: 125 lb, 300 deg F, Water Media, 5.28 in Inlet to Outlet Length, 3.03 in Top to Inlet Center, 1.51 in Opening, Silicon Bronze Body, PTFE Seat, PTFE Disc, Silicon Bronze Trim, 304/306 Stainless Steel Softgoods, Lead-Free, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$920.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications
Body MaterialSilicon Bronze
Connection TypeSolder
Disc MaterialPTFE
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length5.28
MediaWater
Nominal Size1/1/2002
Opening Size1.51
Pressure Class125
Pressure Rating200
Seat MaterialPTFE
SeriesS-413-Y-LF Series
Softgoods Material304/306 Stainless Steel
Temperature Rating300
Top to Inlet Center3.03
Trim MaterialSilicon Bronze
Warranty5 Year
Additional Information
MSS SP-80|NSF Approved|ANSI 61/372
Features & Benefits
- Y-pattern Renewable bronze disc Regrindable seat NIBCO® double oval lead-free body marking
Documents
Marketing Information
The NIBCO® horizontal swing check valve is constructed of high-quality lead-free dezincification-resistant performance bronze silicone alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve features a Y-pattern design with renewable seat and disc and solder end connections for ease of installation. The NIBCO® check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO® 5 Year 125% limited warranty.
