VICF V060771R01 6 GATE VLV 771H GRVXGRV OS&Y
VICF V060771R01 6 GATE VLV 771H GRVXGRV OS&Y

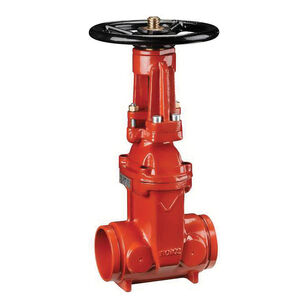

Victaulic® Gate Valve, 771H Series, 6 in Nominal, Grooved Connection, 250 psi, Pressure Class: 150 lb, 10.512 in Inlet to Outlet Length, 23.9 in Top to Inlet Center, Handwheel Operator, Material Standard: ASTM A536 Grade 65-45-12, ASTM B62, ASTM B16, Iron Body, Brass Stem, EPDM Seal, Brass Trim, EPDM Softgoods, Finish: Epoxy-Coated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,884.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialIron
Connection TypeGrooved
FinishEpoxy-Coated
Inlet to Outlet Length10.512
Material StandardASTM A536 Grade 65-45-12, ASTM B62, ASTM B16
Nominal Size6
Operator TypeHandwheel
Pressure Class150
Pressure Rating250
Seal MaterialEPDM
Series771H Series
Softgoods MaterialEPDM
Stem MaterialBrass
Top to Inlet Center23.9
Trim MaterialBrass
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Used when positive shut-off is required in a fire line and a quick visual indicator of open/closed position is needed
Documents
VICF V060771R01 6 GATE VLV 771H GRVXGRV OS&Y
BrandVictaulic®
MFG #V060771R01
Keller #649424
My Part ##
Last Ordered#
$4,884.00 / ea
