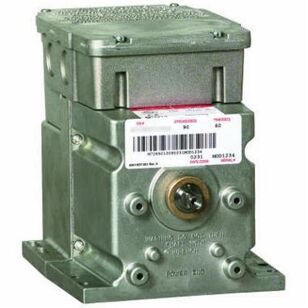

Honeywell Modutrol IV 72 Series M7285A1003/U Damper Actuator, 120 VAC, 7.2 A Full Load, 43.2 A Locked Rotor, 18 W
Honeywell Modutrol IV 72 Series M7285A1003/U Damper Actuator, 120 VAC, 7.2 A Full Load, 43.2 A Locked Rotor, 18 W
Honeywell Modutrol IV 72 Series Damper Actuator, Model: M7285, 7.2 A Full Load, 43.2 A Locked Rotor, 120 VAC, 50/60 Hz Frequency, 18 W Power, VA Rating: 20 VA, Electrical Connection: Screw Terminal, 30 to 60 s Timing, Die Cast Aluminum, 60 in-lb Torque, 100 Ohm at 4 to 20 mA Input, 400 kOhm at 2 to 10 VDC Input Input, -40 to 150 deg F, NEMA 3 Enclosure, Dimensions: 6-7/16 in H x 5-1/2 in W x 8-3/4 in D, Control Signal: Modulating, Auxiliary Switch Control, Foot Mounting, 90 to 160 deg Rotation, Shaft Design: Square, Clockwise Shaft Rotation, 3/8 in Shaft, Adjustable, Asymmetrical Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,376.37Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating7.2 A Full Load, 43.2 A Locked Rotor
ApplicationFor use to control dampers and valves
Control SignalModulating
Control TypeAuxiliary Switch
Dimensions6-7/16 " H x 5-1/2 " W x 8-3/4 " D
Electrical ConnectionScrew Terminal
Enclosure TypeNEMA 3
Frequency Rating50/60
IndustryHVAC
Input Impedance100 Ohm at 4 to 20 mA Input, 400 kOhm at 2 to 10 VDC Input
MaterialDie Cast Aluminum
ModelM7285
Mounting Type'
Power Rating18
Rotation Angle90 to 160
Series72 Series
Shaft DesignSquare
Shaft RotationClockwise
Shaft Size3/8
StrokeAdjustable, Asymmetrical
Temperature Rating-40 to 150
Timing Range30 to 60
Torque Rating60
VA Rating20
Voltage Rating120
Additional Information
CE EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) Marked|UL File No. E4436, Guide No. XAPX Listed
Features & Benefits
- Integral spring return returns motor to normal position when power is interrupted Integral junction box provides NEMA 3 weather protection Motor and circuitry operate from 24 VAC Quick-connect terminals are standard Adapter bracket for matching shaft height of older motors is available Most motors have field adjustable stroke (90 to 160 deg) Integral auxiliary switches are available factory mounted or can be field added Nominal timing standard of 30 s (90 deg stroke) and 60 s (160 deg stroke) Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications All models have dual shafts (slotted and tapped on both ends) All models have auxiliary switch cams Fixed torque throughout the entire voltage range Motors are designed for either normally open or normally closed valves and dampers
