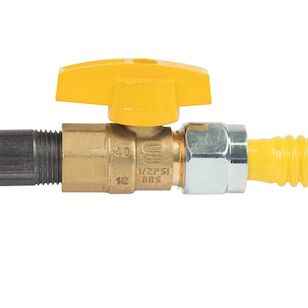

BrassCraft® TBV Series TBV10-8 Ball Valve, 5/8 x 1/2 in, Flared x FIP, Brass, 5 psi
BrassCraft® TBV Series TBV10-8 Ball Valve, 5/8 x 1/2 in, Flared x FIP, Brass, 5 psi
BrassCraft® Ball Valve, TBV Series, 5/8 x 1/2 in Nominal, Flared x FIP Connection, 5 psi, Gas Media, 1.45 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Rubber Seal, Aluminum Handle, -40 to 150 deg F, 2.49 in L x 0.99 in W, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$40.78 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
Body MaterialBrass
Connection TypeFlared x FIP
Dimensions2.49 " L x 0.99 " W
Domestic/ImportImport
Handle MaterialAluminum
IndustryPlumbing
MediaGas
Nominal Size5/8 x 1/2
Pressure Rating5
Seal MaterialRubber
Seat MaterialPTFE
SeriesTBV Series
Stem MaterialBrass
Temperature Rating-40 to 150
Top to Inlet Center1.45
Additional Information
ANSI-Z21.15|ANSI/ASME B16.44|CGA CR91-002|CSA 9.1|CSA Certified
Features & Benefits
- Forged brass body eliminates pin hole leaks commonly associated with cast products Connects to a 5/8 in OD gas connector and a 1/2 in MIP gas supply pipe Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas air mixtures Blowout-proof stem assembled from the inside with double O-rings to ensure safe, reliable performance PTFE seats assure a tight seal and easy-on and off operation even after long periods of inactivity Comfort fit grip handle features an exclusive integration of the 'T' and lever handle designs Quarter-turn operation provides easy-on and off flow control 100% leak tested
Documents
Marketing Information
BrassCraft® exclusive line of Italian made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. This gas ball valve installs directly to the gas pipe stub out at the appliance to regulate gas flow.
