• Valve pressure rating 250 psi
• 225 degreeF continuous and 250 degreeF intermittent service
• Lug style
• EPDM molded-in seat liner
• Aluminum bronze disc
• Stainless steel stem with copper bushings
• Geometric drive
• Extended neck
• Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
• Not recommended for steam service
• Designed to meet MSS SP-67
• MSS SP-25 (markings)
• U.S. Coast Guard Category A

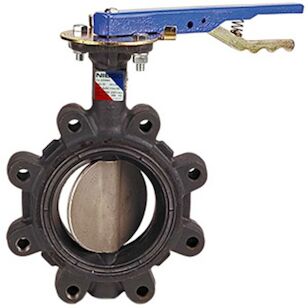

The NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125 Percent limited warranty.
