• Thermostat and heater installed Case hardened steel spur gear train is permanently lubricated Case hardened steel drive shaft Operating temperatures -40 degrees F with standard heater activated, to +140 degrees F Single phase capacitor run motor with thermal overload protection Declutchable manual override with position indicator Dual machined conduit entrances Captive slotted hex bolts on enclosure Operational in any mounting orientation Two single-pole double-throw end of travel micro switches with adjustable cams Weight 17 to 18 lbs. Voltage 24 VDC and 220 VAC Torque 700-1600 in/lb Enclosure certified to NEMA 4 and 7 Female DIN/ISO F07 output drive and F07/F10 bolt pattern

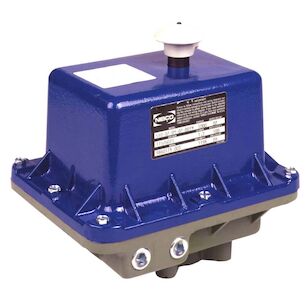

Engineered with a modular approach, NIBCO pecent electric actuation systems offer the flexibility to actuate new valves or to retrofit existing valves with unprecedented ease. Electric actuation systems feature an ISO standard mounting design, assuring long-term industry acceptance. Choose NIBCO pecent flow control products for the most specified, versatile and economical option in commercial and industrial applications. NIBCO pecent actuation products are backed by the NIBCO limited warranty.
