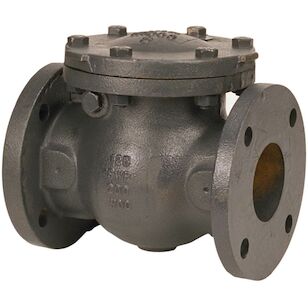

F918N 2-1/2 FLG CHECK CAST IRON
F918N 2-1/2 FLG CHECK CAST IRON
F918N 2-1/2 FLG CHECK CAST IRON
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,233.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialCast Iron
All Type Of ItemValve
End ConnectionFlanged
Height7"
IndustryPlumbing
Length8.5"
Made in USATrue
MadetoorderTrue
MaterialCast Iron
Mpg21
Mto Or Ato MaterialsMTO
Nominal Pipe Size2-1/2
Nominal Size 12-1/2".
Prop 65 WarningYes
Seat Seal MaterialCast Iron
Size Dimensions2-1/2".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeF -- Flanged
Valve Multi Turn Bonnet DesignBolted Bonnet
Valve Pressure Rating Cwp200 PSI/13.8 Bar CWP
Valve Pressure Rating Swp125 PSI/8.6 Bar SWP
Valve Trim PackageIron Trim
Weight34.56 lbs.
Width8"
Features & Benefits
- 125 psi/8.6 bar saturated steam to 353 degreeF/178 degreeC
- 200 psi/13.8 bar non-shock cold working pressure
- All iron trim
- Bolted bonnet
- Renewable seat and disc
- Class 125 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-71 Type 1
Documents
Marketing Information
The NIBCO cast iron check valve features flanged end connections for easy installation. It is equipped with a bolted bonnet for maintenance accessibility. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125 Percent limited warranty.
F918N 2-1/2 FLG CHECK CAST IRON
BrandNIBCO®
MFG #NHE30JE
Keller #660359
