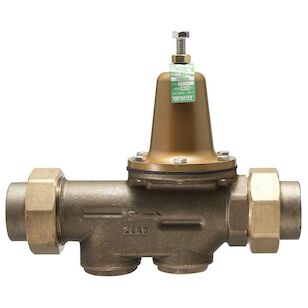

1 1/4 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female SS Seat Adjustable 25-75 psi
1 1/4 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female SS Seat Adjustable 25-75 psi
1 1/4 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female SS Seat Adjustable 25-75 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,973.00Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi25 to 75
Buy American Act CompliantYes
Depth13"
Disc MaterialEPDM
Height8.5"
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection TypeUnion Joint
MaterialLead Free Copper Silicon Alloy
Maximum Temperature Deg F180
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
Seat MaterialStainless Steel
SeriesLF25AUB-Z3
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight8.89 lbs.
Width5.88"
Shipping Dimensions (L x W x H)13" x 5.88" x 8.5"
Features & Benefits
- Double unions, NPT threaded female inlet and outlet
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
Documents
Marketing Information
This 1 1/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
1 1/4 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female SS Seat Adjustable 25-75 psi
BrandWATTS®
MFG #0009353
Keller #661480
