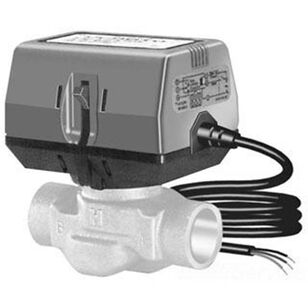

Honeywell Home VC Series VC8715ZZ11/U Valve Actuator, Manual, Plastic
Honeywell Home VC Series VC8715ZZ11/U Valve Actuator, Manual, Plastic
Honeywell Home Valve Actuator, VC Series, Number of Ways/Position: 2/3-Way, 2-Position, 24 V, 60 Hz, VA Rating: 6 VA, Lever Operator, 3 W Power Consumption, 0.4 in Stroke, Manual Actuator, 60 psi, IP40 Enclosure, Plastic Body, -40 to 150 deg F, 2.8 in H x 3.7 in W x 2.7 in D, Additional Information: 32 to 150 deg F Ambient Temperature, 203 deg F Fluid Temperature, SPST Switch
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$336.42Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Actuator TypeManual
Additional Information32 to 150 deg F Ambient Temperature, 203 deg F Fluid Temperature, SPST Switch
Body MaterialPlastic
Dimensions2.8 " H x 3.7 " W x 2.7 " D
Enclosure TypeIP40
Frequency Rating60
Number of Ways/Position2/3-Way, 2-Position
Operator TypeLever
Power Consumption3
Pressure Rating60
SeriesVC Series
Stroke0.4
Temperature Rating-40 to 150
VA Rating6
Voltage Rating24
Additional Information
CSA LR1322-367|UL MH11826
Features & Benefits
- Use with two-way or three-way valves Double insulated actuator Five foot plenum-rated cable Quick and easy replacement of moving parts Actuator head installation does not require draining the system Selectable/switchable electronic fail safe normally open or normally closed All VC Series actuator valve combinations provide 60 psi close-off
Documents
Marketing Information
Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse width modulated 24 V signal or floating input, modulating controller.
