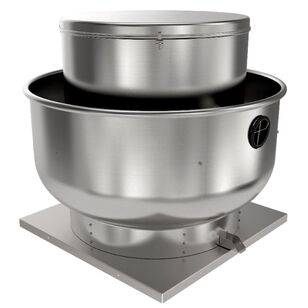

fantech® 5BDU Series 49802 Upblast Roof Fan, 120/230 VAC, Aluminum
fantech® 5BDU Series 49802 Upblast Roof Fan, 120/230 VAC, Aluminum
fantech® Upblast Roof Fan, 5BDU Series, 120/230 VAC, 60 Hz, Aluminum, Up to 300 deg F Inlet, 27-7/8 in Width, 24-5/8 in Height, 2180 cfm at 1/2 hp, 1896 cfm at 1/3 hp, 1725 cfm at 1/4 hp, 1 Phase, 1124 to 1530 rpm
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,292.04 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandfantech®
CFM Rating2180 cfm at 1/2 hp, 1896 cfm at 1/3 hp, 1725 cfm at 1/4 hp
Frequency Rating60
Height24-5/8
MaterialAluminum
Phase1
Series5BDU
Speed Rating1124 to 1530
Temperature RatingUp to 300 deg F Inlet
Voltage Rating120/230
Width27-7/8
Features & Benefits
- Fully welded wind band Externally cooled motor compartment
Marketing Information
Belt-drive upblast ventilators are designed for roof mounted exhaust of commercial and industrial buildings. There models are both for roof and wall application (except 5BDU30 and 5BDU36). Durable spun aluminum construction with steel support braces. Backward-inclined aluminum fan wheel. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDU10 - 5BDU13) and regreasable pillow block bearings (5BDU15 - 5BDU24).
fantech® 5BDU Series 49802 Upblast Roof Fan, 120/230 VAC, Aluminum
Brandfantech®
MFG #49802
Keller #662200
