ANSI B16.5|ANSI/NSF 61/372|ASTM D1784/E84/F439/F441|LPCB Certified|NSF Certified|UL 94 V-0/5VB/5VA Flammability Rating

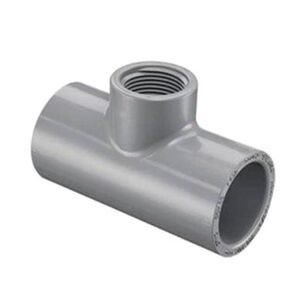

• Spears® comprehensive line of CPVC fittings offers a variety of configurations in SCH 80 sizes 1/4 in through 24 in Spears® SCH 80 CPVC fittings are injection molded through IPS size 14 in Unlike metal, CPVC fittings never rust, scale or pit and will provide many years of maintenance-free service and extended system life High temperature CPVC thermoplastics can handle fluids at service temperatures up to 200 deg F, allowing a wide range of process applications, including hot corrosive liquids Smooth interior walls result in lower pressure loss and higher volume than conventional metal fittings Substantially lower material costs than steel alloys or lined steel, combined with lightweight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems

Spears® EverTUFF® industrial SCH 80 CPVC pipe and fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Spears® EverTUFF® CPVC pipe, fittings and Spears® CPVC solvent cement are certified lead-free by NSF international (NSF) in accordance with ANSI/NSF 61 and NSF 372 for compliance with all state and federal regulations. Approved by national, state and most municipal building codes and listed by ICC to ASTM E84 for flame and smoke characteristics of less than 25/50 for use in return air plenums, resulting products are subjected to numerous verification tests to assure the very best CPVC piping products available.
