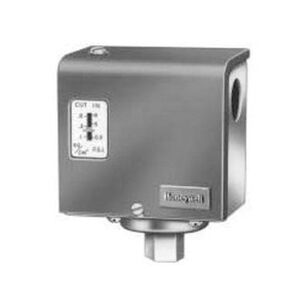

Honeywell PA404A1025 Pressuretrol Pressure Control, 3 to 15 psi
Honeywell PA404A1025 Pressuretrol Pressure Control, 3 to 15 psi
Honeywell Pressuretrol Pressure Control, 3 to 15 psi, Finish: Enamel, Gray, 66 deg C, 4-15/32 in L x 3-3/8 in W x 2-1/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$630.39Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ColorGray
Dimensions4-15/32 " L x 3-3/8 " W x 2-1/4 " H
FinishEnamel
Pressure Rating3 to 15
Temperature Rating66
Additional Information
UL file Number MP466, guide Number MBPR, CSA file Number LR1620
Features & Benefits
- SPST microswitch snap-acting action 1/4 in female pipe threads Pressure actuated high limit, safety control for steam heating boilers, It breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level Suspension type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam Sensitive pressure actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch Screw on top of the case allows setpoint adjustment without removing the cover Differential is adjusted by means of a dial located inside the case Makes at setpoint minus differential on pressure fall, breaks at setpoint on pressure rise
Documents
Honeywell PA404A1025 Pressuretrol Pressure Control, 3 to 15 psi
BrandHoneywell
MFG #PA404A1025/U
Keller #664861
