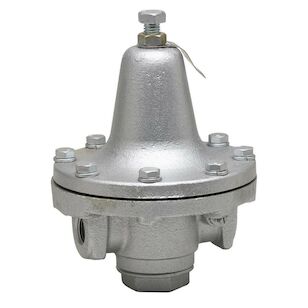

1 1/4 IN Iron Process Steam Pressure Regulator Tight Seating Reduced Pressure Range 30 to 150 psi PTFE Valve Disc
1 1/4 IN Iron Process Steam Pressure Regulator Tight Seating Reduced Pressure Range 30 to 150 psi PTFE Valve Disc
1 1/4 IN Iron Process Steam Pressure Regulator Tight Seating Reduced Pressure Range 30 to 150 psi PTFE Valve Disc
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,989.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi30 to 150
Depth7.5"
Disc MaterialTeflon
Height9.38"
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection TypeFemale Threaded
MaterialIron
Maximum Temperature Deg F300
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1-1/4"
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
Series152A
Valve StyleStandard
Weight20 lbs.
Width7.5"
Shipping Dimensions (L x W x H)7.5" x 7.5" x 9.38"
Features & Benefits
- Iron body with stainless steel strainer screen, disc and stem guide
- Sensitivity adjuster eliminates vibrating that can arise due to critical flow requirements
- Ability to maintain full volume without appreciable reduced pressure drop
- Serviceable in-line
Documents
Marketing Information
This 1 1/4 inch process steam pressure regulator is designed for autoclaves, steam tables/irons, vulcanizers and single radiators. It is also used on sterilizers, process lines, testing fixtures and oil lines. It is highly sensitive to reduced pressure changes, and carries full volume with minimum pressure drop. It features an iron body with tight seating and PTFE valve disc, and adjusting spring for reduced pressure range of 30 to 150 psi (2.1 to 10.3 bar).
1 1/4 IN Iron Process Steam Pressure Regulator Tight Seating Reduced Pressure Range 30 to 150 psi PTFE Valve Disc
BrandWATTS®
MFG #0832171
Keller #666883
