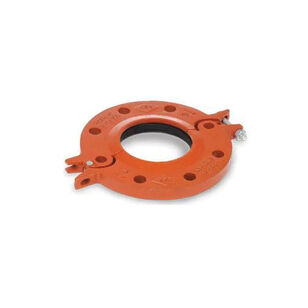

SCI 3 HINGED FLANGE ADAPTER
SCI 3 HINGED FLANGE ADAPTER
SCI® Hinged Adapter, 65FH Series, Adapter Fitting, 3 in Connection Size 1, Iron, Material Construction: Iron, Finish: Enamel-Coated, Pressure Class: 125/150 lb, 300 psi, Dimension Standards: AWWA C-606, 7.5 in L x 0.94 in THK, Additional Information: ASTM A536 Grade 65-45-12 Material Standard, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$296.94 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSCI®
Additional InformationASTM A536 Grade 65-45-12 Material Standard, Import
Connection Size 13
Dimension StandardsAWWA C-606
Dimensions7.5 " L x 0.94 " THK
FinishEnamel-Coated
Fitting TypeAdapter
Includes3/8 x 2-3/4 in Latch Bolt
IndustryPlumbing
MaterialIron
Material ConstructionIron
Pressure Class125/150
Pressure Rating300
Series65FH Series
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Maximum working pressure 300 psi (20.7 bar) depending on flange size and schedule of pipe All bolt and gaskets identified by SCI logo 100% magnetic particle inspection of each bolt Each bolt has a minimum tensile strength of 110000 psi Gasket grade E - EPDM (green stripe) -30 to 230 deg F Gasket grade T - Nitrile (orange stripe) -20 to 180 deg F Matches Class 125/150 flange dimensions
Documents
SCI 3 HINGED FLANGE ADAPTER
BrandSCI®
MFG #4326000004
