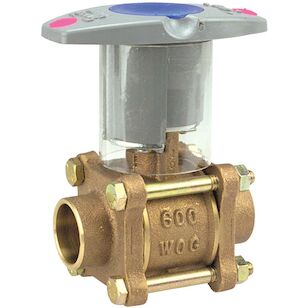

NIBCO S595Y66NS-3/4 BRZ BALL VLV
NIBCO S595Y66NS-3/4 BRZ BALL VLV
NIBCO®, 3/4 in Nominal, Connection Type: Female Solder Cup, Full Port, 600 psi CWP, 150 psi SWP, Quarter-Turn NIB-SEAL Percent Extended Insulated Handle Operator, Bronze Body, Stainless Steel Stem, PTFE Seal, Stainless Steel Trim, Stainless Steel Ball
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$419.90 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialStainless Steel
Body MaterialBronze
Connection TypeFemale Solder Cup
Nominal Size3/4
Operator TypeQuarter-Turn NIB-SEAL Percent Extended Insulated Handle
Port TypeFull
Pressure Rating600 psi CWP, 150 psi SWP
Seal MaterialPTFE
Stem MaterialStainless Steel
Trim MaterialStainless Steel
Shipping Dimensions (L x W x H)6.5" x 3.25" x 3.31"
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Full port Stainless steel ball and stem Blowout-proof stem Vented ball Standard lever handle or locking lever, optional NIB-SEAL pecent Solder end connections Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-110
Marketing Information
The NIBCO pecent bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The three-piece valve features solder ends for easy installation. Options include NIB-SEAL pecent insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
NIBCO S595Y66NS-3/4 BRZ BALL VLV
BrandNIBCO®
MFG #NJ93H48
Keller #672508
