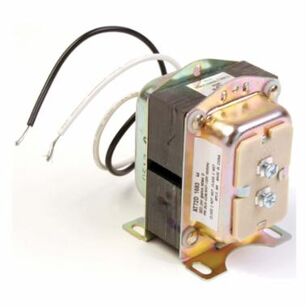

resideo AT72D1683/U Transformer, 120 V Primary, 26.5 V Secondary, 40 VA
Honeywell
resideo AT72D1683/U Transformer, 120 V Primary, 26.5 V Secondary, 40 VA
MFG #AT72D1683/U
Item #67316
Mfr. Part #AT72D1683/U
UPC #085267990103
resideo Transformer, 120 V Primary, 26.5 V Secondary Voltage, 40 VA, Class: 2, 3, Metallic Housing, 2-7/32 in Overall Width, 3-1/16 in Overall Depth, 3-7/32 in Overall Height, Additional Information: Lead Wire Primary/Screw Terminal Secondary Connection, 50/60 Hz Frequency Rating, Universal Mount
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$121.72Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional InformationLead Wire Primary/Screw Terminal Secondary Connection, 50/60 Hz Frequency Rating, Universal Mount
Class2, 3
Housing ColorMetallic
IndustryHVAC
Overall Depth3-1/16
Overall Height3-7/32
Overall Width2-7/32
Power Rating40
Primary Voltage120
Secondary Voltage26.5
Additional Information
CSA Certified|NEC Certified|NEMA Standard DC20-1992|NEMA Type D|UL 1585
Features & Benefits
- Override protection Color-coded lead wires for primary connections Energy limiting and meets NEMA standard DC20-1992 Transformers are marked NEMA type-d enclosure
Documents
Marketing Information
The 40 VA transformers by resideo power 24V systems including thermostats, gas valves and relays. They feature override protection and color-coded lead wires for primary connections. Energy limiting, they meet NEMA standard DC20-1992 and have Type-D enclosure. They meet NEC class 2 not wet, class 3 wet and UL 1585 requirements.
