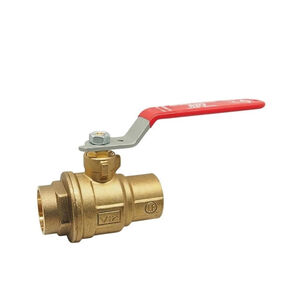

RWV® ECO-VALVE 5049AB Series 5049AB 2 Ball Valve, 2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE 5049AB Series 5049AB 2 Ball Valve, 2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE Ball Valve, 5049AB Series, 2 in Nominal, Solder Connection, Full Port, 2-Piece, 150 psi WSP, 600 psi WOG, Gas, Oil, Steam, Water Media, 1.97 in Orifice, 5.51 in Inlet to Outlet Length, 3.58 in Top to Inlet Center, 2.128 to 2.132 in Opening, Handle Operator, 360 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, ASTM B124 C37700, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, Brass Ball, PTFE Softgoods, Lead-Free, 15 to 160 deg F, 5.51 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$254.23 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
Additional Information29 inHg Vacuum
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeSolder
Dimensions5.51 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)360
Handle MaterialSteel
Inlet to Outlet Length5.51
Material StandardASTM B927 C27453, ASTM B124 C37700, ASTM A36
MediaGas, Oil, Steam, Water
Nominal Size2
Opening Size2.128 to 2.132
Operator TypeHandle
Orifice Size1.97
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi WOG
Seat MaterialPTFE
Series5049AB Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center3.58
Trim MaterialBrass/PTFE
Additional Information
California AB1953|BAA Compliant|ASME B16.22|cTLus Listed|MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Adjustable packing nut Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® ECO-VALVE 5049AB Series 5049AB 2 Ball Valve, 2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
BrandRWV®
MFG #5049AB 2
Keller #675757
My Part ##
Last Ordered#
$254.23 / ea
