RWV®

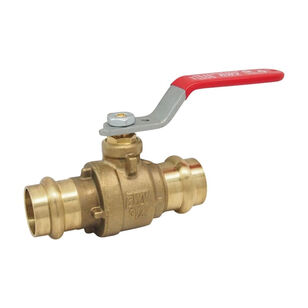

RWV® ECO-VALVE 5020AB Series 5020AB 1-1/4 Ball Valve, 1-1/4 in, Press, Brass, 600 psi
RWV®
RWV® ECO-VALVE 5020AB Series 5020AB 1-1/4 Ball Valve, 1-1/4 in, Press, Brass, 600 psi
MFG #5020AB 1-1/4
Item #677652
Mfr. Part #5020AB 1-1/4
UPC #670779439075
RWV® ECO-VALVE Ball Valve, 5020AB Series, 1-1/4 in Nominal, Press Connection, Full Port, 2-Piece, 600 psi, Gas, Oil, Water Media, 1.26 in Orifice, 4.29 in Inlet to Outlet Length, 2.82 in Top to Inlet Center, 1.39 in Opening, Lever Handle Operator, 110 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Brass/PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 4.29 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$170.63 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypePress
Dimensions4.29 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)110
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.29
Lead-FreeYes
Material StandardASTM B927 C27453, ASTM A36
MediaGas, Oil, Water
Nominal Size1-1/4
Opening Size1.39
Operator TypeLever Handle
Orifice Size1.26
Packing MaterialBrass/PTFE
Port TypeFull
Pressure Rating600
Seat MaterialPTFE
Series5020AB Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center2.82
Trim MaterialBrass/PTFE
Additional Information
California AB1953|BAA Compliant|cTLus Listed|MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Adjustable packing nut Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
