LD10005 36 DI BODY, EPDM LINER, AL BRZ.
LD10005 36 DI BODY, EPDM LINER, AL BRZ.
LD10005 36 DI BODY, EPDM LINER, AL BRZ.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$111,206.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialDuctile Iron
All Type Of ItemValve
End ConnectionLug
Height28.38"
IndustryPlumbing
Length70.55"
MaterialDuctile Iron
Mpg2P
Nominal Pipe Size36
Nominal Size 136".
Prop 65 WarningYes
Seat Seal MaterialEPDM Rubber
Size Dimensions36".
System UseCommercial Plumbing, HVAC, Industrial
Turns OperationsQuarter-Turn
Type Of ValveButterfly Valve
Valve Butterfly OperatorGear Operator
Valve End Connection TypeL - Lug
Valve Pressure Rating Psi150 PSI rated pressure
Weight1801 lbs.
Width46"
Features & Benefits
- Valve pressure rating 150 psi
- 225 degreeF continuous and 250 degreeF intermittent service
- Lug style
- EPDM cartridge seat liner
- Aluminum bronze disc
- Stainless steel stem with bronze bushings
- Extended neck
- Operating mechanism: Bare stem, manual gear operator and pneumatic/electric automation
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
Marketing Information

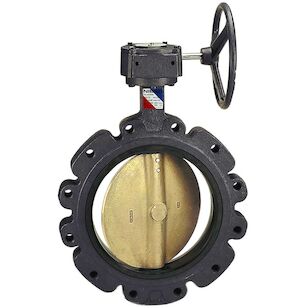

The NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge liner with aluminum bronze disc is recommended for most water applications. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125 Percent limited warranty.
LD10005 36 DI BODY, EPDM LINER, AL BRZ.
BrandNIBCO®
MFG #NLGL15Z
Keller #678565
My Part ##
Last Ordered#
$111,206.00 / ea
