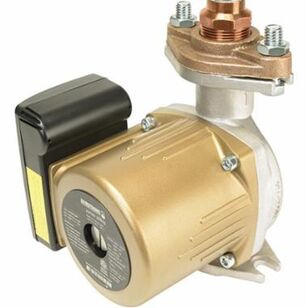

ARMSTRONG Astro 2 Series Astro 220ssu 110223-309 Circulator Pump, 9 gpm, 33 W, 115 V, 0.29 A, 60 Hz, Stainless Steel
ARMSTRONG Astro 2 Series Astro 220ssu 110223-309 Circulator Pump, 9 gpm, 33 W, 115 V, 0.29 A, 60 Hz, Stainless Steel
ARMSTRONG Circulator Pump, Astro 2 Series, Model: Astro 220ssu, 9 gpm Flow Rate, 42 ft Maximum Head, 33 W, 115 V, 0.29 A, 60 Hz, 150 psi Maximum Pressure, 1-1/4 in Connection, Union Connection, 1 ph Phase, 39 to 104 deg F, Stainless Steel, Finish: Stainless Steel, 6 in H x 5 in W, Additional Information: Noryl Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandARMSTRONG
Additional InformationNoryl Impeller Material
Amperage Rating0.29
Connection Size1-1/4
Connection TypeUnion
Dimensions6 " H x 5 " W
FinishStainless Steel
Flow Rate9
Frequency Rating60
IndustryPlumbing
MaterialStainless Steel
Maximum Head42
Maximum Pressure150
ModelAstro 220ssu
Phase1
Power Rating33
SeriesAstro 2 Series
Temperature Rating39 to 104
Voltage Rating115
Additional Information
NSF 372
Features & Benefits
- Adjustable performance Easy electrical connection Easy pump replacement and cross reference Cross reference information is printed on the box, for convenient access Flange-to-flange compatibility offers quick and easy exchange of competing models Large wiring box and convenient plug-in terminal strip save time High flow check valve, is pre-installed for convenience, where the installation does not call for a check valve, it can be removed in seconds
Marketing Information
The ARMSTRONG Astro 2 circulators are designed for quiet operation and zero maintenance. In combination with cast iron volutes the Astro 2 line is intended to circulate water or ethylene glycol solutions in closed hydronic or solar heating systems. The Astro 2 line is available in three volute materials for residential, small industrial and commercial applications.
ARMSTRONG Astro 2 Series Astro 220ssu 110223-309 Circulator Pump, 9 gpm, 33 W, 115 V, 0.29 A, 60 Hz, Stainless Steel
BrandARMSTRONG
MFG #110223-309
Keller #679771
