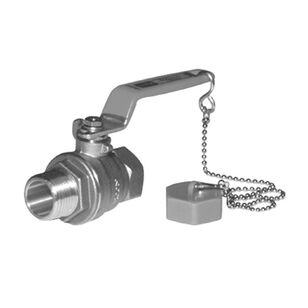

KITZ 68C Series 68C-034 Ball Valve, 3/4 in, FNPT x Hose Thread, Brass, 150 psi WSP, 600 psi WOG
KITZ 68C Series 68C-034 Ball Valve, 3/4 in, FNPT x Hose Thread, Brass, 150 psi WSP, 600 psi WOG
KITZ Ball Valve, 68C Series, 3/4 in Nominal, FNPT x Hose Thread Connection, Full Port, 2-Piece, 150 psi WSP, 600 psi WOG, Gas, Oil, Water Media, 0.79 in Orifice, 3.3 in Inlet to Outlet Length, 2.01 in Top to Inlet Center, Handle Operator, 46 Cv Flow Coefficient (Cv), Material Standard: ANSI B1.20.1/ANSI B2.4, ASTM B283, ASTM C37700, ASTM B16, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, PTFE Trim, PTFE Packing, Carbon Steel Handle, Brass Ball, NBT/PTFE Softgoods, Contains Lead, 366 deg F, 3.3 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$57.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandKITZ
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeFNPT x Hose Thread
Dimensions3.3 " L
Flow Coefficient (Cv)46
Handle MaterialCarbon Steel
IndustryPlumbing
Inlet to Outlet Length3.3
Material StandardANSI B1.20.1/ANSI B2.4, ASTM B283, ASTM C37700, ASTM B16
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeHandle
Orifice Size0.79
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi WOG
Seal MaterialPTFE
Seat MaterialPTFE
Series68C Series
Softgoods MaterialNBT/PTFE
Stem MaterialBrass
Temperature Rating366
Top to Inlet Center2.01
Trim MaterialPTFE
Additional Information
MSS-SP-110
Features & Benefits
- Chrome-plated/vented ball Blowout-proof stem
Documents
KITZ 68C Series 68C-034 Ball Valve, 3/4 in, FNPT x Hose Thread, Brass, 150 psi WSP, 600 psi WOG
BrandKITZ
MFG #68C-034
Keller #680523
My Part ##
Last Ordered#
$57.00Â /Â ea
