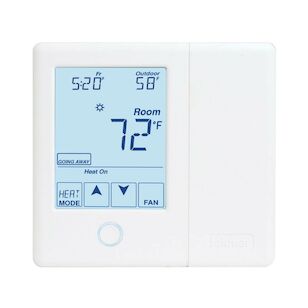

tekmarNet Thermostat, Radiant Floor, 2 Heat Pump/Cool, Backup, Humidity
tekmarNet Thermostat, Radiant Floor, 2 Heat Pump/Cool, Backup, Humidity
tekmarNet Thermostat, Radiant Floor, 2 Heat Pump/Cool, Backup, Humidity
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,169.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandTekmar®
Ambient Temperature Range32 to 122 degree F
ClassNEC/CEC Class 2
Control TypeMicroprocessor
Depth0.88"
Enclosure MaterialPolyvinyl Chloride
FinishWhite
Height4.5"
Indoor OutdoorIndoor
IndustryPlumbing
NEMA RatingNEMA 1
Power Rating2 VA Standby
Power Supply24 V plus /-10 percent , 60 Hz
Prop 65 WarningYes
Relative Humidity<=90 percent Non-Condensing
Relay24 VAC, 2A, 0 - 10 VDC Output
SafetylistMeets Class B: ICES and FCC Part 15
SensorNTC Thermistor, 10 kOhm at 77 degree F (25 degree C plus /- 0.2 degree C) Beta = 3892, Humidity Sensor: 0 to 90 percent plus /- 3 percent RH
Width4.75"
Features & Benefits
- Optimum start, scenes
- Radiant floor heating and cooling, outdoor and floor temperature display
- Daylight savings time, backlight
- Zone post purge, programmable schedule
- Air group master, network schedule master or member
- Auto heating cycle, tekmarNet communication compatible
- Temporary hold, away scene key
- Warm weather shut down, zone synchronization
- Touchscreen technology, 3 auxiliary sensor inputs
Documents
tekmarNet Thermostat, Radiant Floor, 2 Heat Pump/Cool, Backup, Humidity
BrandTekmar®
MFG #557
Keller #681496
