Honeywell

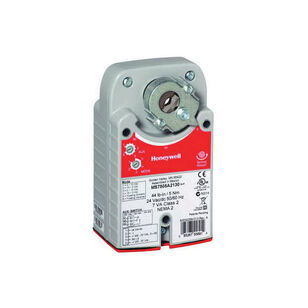

Honeywell MS7503A2030/U Damper Actuator, 24 VAC, (0) 2 - 10 VDC Control Signal, 4 - 20 mA, 90 sec at 60 Hz Timing

Honeywell MS7503A2030/U Damper Actuator, 24 VAC, (0) 2 - 10 VDC Control Signal, 4 - 20 mA, 90 sec at 60 Hz Timing
Honeywell

Honeywell MS7503A2030/U Damper Actuator, 24 VAC, (0) 2 - 10 VDC Control Signal, 4 - 20 mA, 90 sec at 60 Hz Timing

MFG #MS7503A2030/U

Item #682182

Mfr. Part #MS7503A2030/U

UPC #085267328272

Honeywell Damper Actuator, 4 - 20 mA, 24 VAC, (0) 2 - 10 VDC Control Signal, 50/60 Hz, 6/3 V-A VA, 90 sec at 60 Hz Timing, Plastic, 27 in-lb, 70 in-lb Max Stall Torque, 40 dBA at 1 m Driving, 20 dBA at 1 m Holding, -40 to 150 deg F Storage, -40 to 149 deg F Ambient, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3-55/84 in W x 6-81/54 in H x 3-5/32 in D, SPDT, Floating, On-Off Control Signal, Direct Coupled Mounting, 95 +/-3 deg Stroke

Why Create an Account?

  • Ability to track orders
  • More Options & Savings
  • Amazing Customer Service
$529.41 / ea
Out of Stock
Attributes
BrandHoneywell
Amperage Rating4 to 20
ApplicationFor HVAC systems
Control SignalSPDT, Floating, On-Off
Dimensions3-55/84 " W x 3-5/32 " D x 6-81/54 " H
Enclosure TypeNEMA 2, IP54
Frequency Rating50/60
Humidity Rating5 to 95% RH Non-Condensing
IncludesMounting Bracket, Self-Centering Shaft Adapter
IndustryHVAC
MaterialPlastic
Mounting TypeDirect Coupled
Noise Level40 dBA at 1 m Driving, 20 dBA at 1 m Holding
Stroke95 +/-3 deg
Temperature Rating-40 to 150 deg F Storage, -40 to 149 deg F Ambient
Timing Range90 s at 60 Hz
Torque Rating27 "-lb, 70 "-lb Max Stall
VA Rating6/3
Voltage Rating24 VAC, (0) 2 to 10 VDC Control Signal
Honeywell MS7503A2030/U Damper Actuator, 24 VAC, (0) 2 - 10 VDC Control Signal, 4 - 20 mA, 90 sec at 60 Hz Timing
Honeywell MS7503A2030/U Damper Actuator, 24 VAC, (0) 2 - 10 VDC Control Signal, 4 - 20 mA, 90 sec at 60 Hz Timing
BrandHoneywell
MFG #MS7503A2030/U
Keller #682182
My Part ##
Last Ordered#
Price
$529.41 / ea
