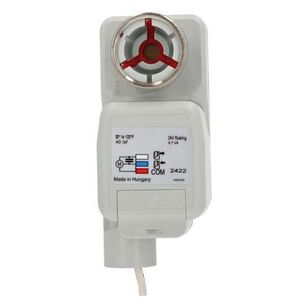

Honeywell Non-Spring Return Actuator, 0.1 mA, 24 VAC, 50/60 Hz, VA Rating: 1.4 VA, Floating, 1.5 m Cable Electrical Connection, Manual Operator, 1.4 VA Power Consumption, 125 to 150 s Timing, 27 to 44 in-lb Torque, 100 kOhm Input, 1/4 in Stroke, Close-Off Actuator, Non-Spring Return Valve Action, Floating or Modulating Signal, Hot and Cold Water Service, Non-Spring Return Valve Design, Brass Body, Yellow, 32 to 122 deg F, 3-15/16 in H x 1-15/16 in W x 2-3/8 in D
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$360.46Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandHoneywell
Actuator TypeClose-Off
Amperage Rating0.1
Body MaterialBrass
ColorYellow
ConfigurationFloating
Dimensions3-15/16 " H x 1-15/16 " W x 2-3/8 " D
Electrical Connection1.5 m Cable
Frequency Rating50/60
IndustryHVAC
Input Impedance100
Operator TypeManual
Power Consumption1.4
Service TypeHot and Cold Water
Signal TypeFloating or Modulating
Stroke1/4
Temperature Rating32 to 122
Timing Range125 to 150
Torque Rating27 to 44
VA Rating1.4
Valve ActionNon-Spring Return
Valve DesignNon-Spring Return
Voltage Rating24
Additional Information
UL Listed
Features & Benefits
Especially suitable for Excel® Controller or Individual Room Controller (IRC) System
Internal valve position indicator
Magnetic coupling for torque limitation independent of voltage supply, and self-adjustment of close-off port
Ready-to-wire connecting cable
M74XXF receives 0 to 10 Vdc or 2 to 10 Vdc input signal, selectable at the site
M74XXF includes direct/reverse acting switch
Cartridge Globe Valve Actuators are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
