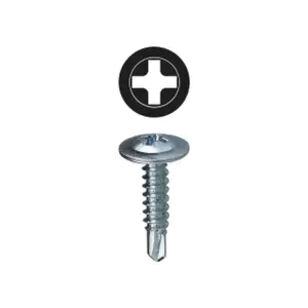

Dottie® TEKW8114 Self-Drilling Screw, #8 Thread, 1-1/4 in OAL, Wafer Head, Phillips® Drive, Carbon Steel, Zinc-Plated
Dottie® TEKW8114 Self-Drilling Screw, #8 Thread, 1-1/4 in OAL, Wafer Head, Phillips® Drive, Carbon Steel, Zinc-Plated
Dottie® Self-Drilling Screw, #8 Thread, DWDS Thread, 1-1/4 in Overall Length, 0.42 to 0.44 in Dia x 0.075 to 0.098 in H Head, Wafer Head, Phillips® Drive, #3 Point, Carbon Steel, Zinc-Plated, Additional Information: 18 TPI, 32 to 40 HRC Rockwell Hardness
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.26 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDottie®
Additional Information18 TPI, 32 to 40 HRC Rockwell Hardness
ApplicationMetal to Metal Applications
Drive TypePhillips
FinishZinc-Plated
Head Size0.42 to 0.44 " Dia x 0.075 to 0.098 " H
Head TypeWafer
MaterialCarbon Steel
Overall Length1-1/4
Point Size#3
Thread Size#8
Thread TypeDWDS
Shipping Dimensions (L x W x H)1.54" x 2.92" x 3.66"
Additional Information
ASTM C1513|IFI-113|RoHS Compliant
Features & Benefits
- Taps and fastens in one operation
Marketing Information
Self-drilling screws are manufactured from cold heading steel and feature a two-drill point. The unique tip design allows them to drill, tap and fasten metal to metal objects in one-operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.
Dottie® TEKW8114 Self-Drilling Screw, #8 Thread, 1-1/4 in OAL, Wafer Head, Phillips® Drive, Carbon Steel, Zinc-Plated
BrandDottie®
MFG #TEKW8114
Keller #682977
