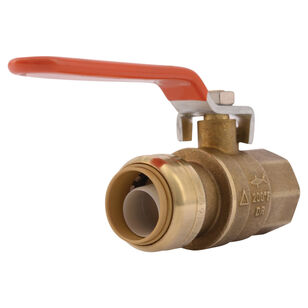

SharkBite™ 22186-0000LF Ball Valve With FNPT Connector, 3/4 in, FNPT, Brass, 200 psi
SharkBite™ 22186-0000LF Ball Valve With FNPT Connector, 3/4 in, FNPT, Brass, 200 psi
SharkBite™ Ball Valve With FNPT Connector, 3/4 in Nominal, FNPT Connection, Full Port, 200 psi, Water Media, 5 in Inlet to Outlet Length, 3.7 in Top to Inlet Center, 1 Handles, Lever Handle Operator, Brass Body, Brass Stem, Brass Trim, PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 200 deg F, 5 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$42.40 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
ApplicationFor working in tight spaces
Ball MaterialBrass
Body MaterialBrass
Connection TypeFNPT
Dimensions5 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length5
Lead-FreeYes
MediaWater
Nominal Size3/4
Number of Handles1
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating200
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating200
Top to Inlet Center3.7
Trim MaterialBrass
WarrantyLimited
Additional Information
ANSI Z1157|IAPMO Approved|NSF/ANSI/CAN 61, 372
Features & Benefits
- Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipes Can be installed in wet lines No special tool, crimping, glue or soldering is needed Remove using a disconnect clip or disconnect tongs (both sold separately)
Marketing Information
Allows for transition from a FNPT threaded end-to a PEX, copper, CPVC, PE-RT or SDR-9 HDPE pipe. innovative push-to-connect design makes for quick and easy installation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
SharkBite™ 22186-0000LF Ball Valve With FNPT Connector, 3/4 in, FNPT, Brass, 200 psi
BrandSharkBite™
MFG #22186-0000LF
Keller #683201
