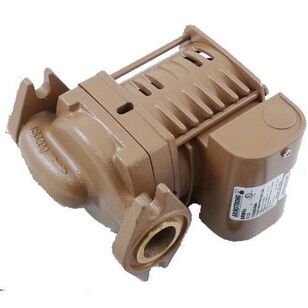

ARMSTRONG E.2 Series E9.2B 182202-660 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure
ARMSTRONG E.2 Series E9.2B 182202-660 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure
ARMSTRONG Circulator Pump, E.2 Series, Model: E9.2B, 0 to 38 gpm Flow Rate, 0 to 42.4 ft Maximum Head, 125 W, 120 V, 2 A, 60 Hz, 150 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/6 hp, 1-1/4 in Connection, Flanged Connection, 1 ph Phase, 1 Poles, 32 to 230 deg F, Lead-Free Bronze, 7.1 in L x 4.2 in W x 6.4 in H, Additional Information: Glass-Filled Noryl Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandARMSTRONG
Additional InformationGlass-Filled Noryl Impeller Material
Amperage Rating2
Connection Size1-1/4
Connection TypeFlanged
Dimensions7.1 " L x 4.2 " W x 6.4 " H
Flow Rate0 to 38
Frequency Rating60
HP Rating1/6
IndustryPlumbing
MaterialLead-Free Bronze
Maximum Head0 to 42.4
Maximum Pressure150
ModelE9.2B
Motor Speed Rating3250
Number of Poles1
Phase1
Power Rating125
SeriesE.2 Series
Temperature Rating32 to 230
Voltage Rating120
Features & Benefits
- Two bolt flanges Larger, stainless steel shaft New sealed, permanently lubricated bearings Bellows-style mechanical seal with silicon carbide wear surfaces New water slinger to protect motor against water intrusion
ARMSTRONG E.2 Series E9.2B 182202-660 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure
BrandARMSTRONG
MFG #182202-660
Keller #683408
My Part ##
Last Ordered#
Call for Price / ea
