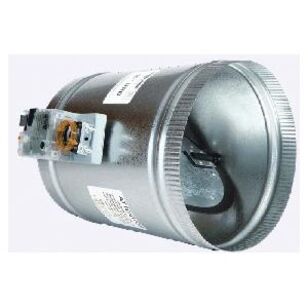

EWC® ULTRA-ZONE™ URD-9 Motorized Damper With MA-ND5 Actuator, 9 in Dia, Steel, Galvanized, Round
EWC® ULTRA-ZONE™ URD-9 Motorized Damper With MA-ND5 Actuator, 9 in Dia, Steel, Galvanized, Round
EWC® Motorized Damper, Series: URD Series, 9 in Dia Size, 24 V, 50/60 Hz, 1 W, 1.5 VA Rating, Double Layered Blade, 24 ga, Steel, Galvanized, Power Closed/Power Open Motor, 2-3/4 in W Motor Specifications, Round Shape, 310 cfm, 35 s, 18 in-lb Torque, 1.5 in-WC, 12 in L x 12 in W x 12 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$420.54 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandEWC®
Blade TypeDouble Layered
Dimensions12 " L x 12 " W x 12 " H
FinishGalvanized
Flow Rate310
Frequency Rating50/60
Gauge24
IndustryHVAC
MaterialSteel
Motor Specifications2-3/4 " W
Motor TypePower Closed/Power Open
Power Rating1
Pressure Rating1.5
SeriesURD Series
ShapeRound
Size9 " Dia
Timing Range35
Torque Rating18
VA Rating1.5
Voltage Rating24
Additional Information
UL Listed
Documents
Marketing Information
A single blade round damper with a (2) two position, 24 volt motor. The motor is powered both ways - powered open and powered closed. The motor features LED's that indicate the position of the motor whether open or closed. The LED's are colored RED for closed and GREEN for open. These indictors are a failsafe measure meaning that they will not illuminate until the blade of the damper has gone to its full open or full closed position. The motor is a 3 wire hook-up with a common, a power open leg and a power closed leg.
EWC® ULTRA-ZONE™ URD-9 Motorized Damper With MA-ND5 Actuator, 9 in Dia, Steel, Galvanized, Round
BrandEWC®
MFG #9URD
Keller #683821
