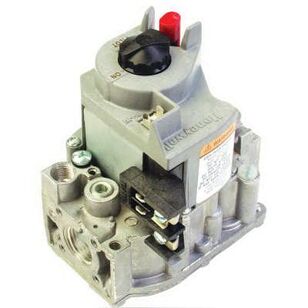

Honeywell VR8200 Series VR8200A2744/U Combination Gas Control Valve, 1/2 in, 1/2 psi
Honeywell VR8200 Series VR8200A2744/U Combination Gas Control Valve, 1/2 in, 1/2 psi
Honeywell Combination Gas Control Valve, VR8200 Series, 1/2 in Nominal, 1/2 psi Pressure, 1 Stage, Standing Pilot Ignition, Electrical Connection: 1/4 in Quick-Connect Male Terminal, 300 mA Hold-In, 250 to 90 mA Drop-Out, 24 VAC at 60 Hz, 20000 to 200000 Btu/hr Natural Gas, 130000 Btu/hr at 1 in-WC Pressure Drop Nominal, LP Gas, Natural Gas Fuel, NPT with Plug Pressure Tap, Compression Tube Pilot Hose Connection, 0 to 175 deg F, Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$379.42Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Amperage Rating300 mA Hold-", 250 to 90 mA Drop-Out
Dimensions5-3/8 " H x 4-1/16 " W x 2-11/16 " D
Electrical Connection1/4 " Quick-Connect Male Terminal
Fuel TypeLP Gas, Natural Gas
Hose Connection TypeNPT with Plug Pressure Tap, Compression Tube Pilot
Ignition TypeStanding Pilot
IndustryHVAC
Nominal Capacity20000 to 200000 Btu/hr Natural Gas, 130000 Btu/hr at 1 "-WC Pressure Drop
Nominal Size1/2
Number of Stages1
Pressure Rating1/2
SeriesVR8200 Series
Temperature Rating0 to 175
Voltage Rating24 VAC at 60 Hz
Additional Information
AGA 4717|CSA 112395|UL MCCZ2.MH5323
Features & Benefits
- Controls includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment Compact size Provides (2) automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meets codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of gas control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with Eco connector Lite-Rite (off-pilot-on) lighting sequence 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Straight through body pattern
Honeywell VR8200 Series VR8200A2744/U Combination Gas Control Valve, 1/2 in, 1/2 psi
Brandresideo
MFG #VR8200A2744/U
Keller #685696
My Part ##
Last Ordered#
$379.42Â /Â ea
