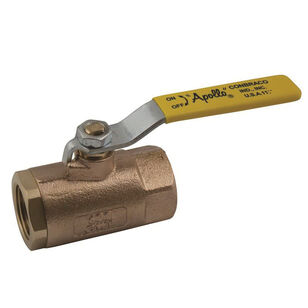

Apollo® 70-100 Series 70-105-57 Ball Valve With Oxygen Cleaned, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® 70-100 Series 70-105-57 Ball Valve With Oxygen Cleaned, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve With Oxygen Cleaned, 70-100 Series, 1 in Nominal, FNPT Connection, Standard Port, 2-Piece, Standard, 150 psi WSP, 600 psi CWP, Gas, Steam, Water Media, 0.87 in Orifice, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B16, ASTM B584 C84400, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, Brass/PTFE/RPTFE Trim, MPTFE Packing, Steel/Vinyl Handle, Bronze Ball, MPTFE/PTFE/RPTFE Softgoods, Yellow, 500 deg F, 3.37 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$113.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor heating, cooling, steam and vacuum applications
Ball MaterialBronze
Body MaterialBronze
ColorYellow
Configuration2-Piece, Standard
Connection TypeFNPT
Dimensions3.37 " L
Domestic/ImportDomestic
Handle MaterialSteel/Vinyl
IndustryPlumbing
Inlet to Outlet Length3.37
Material StandardASTM B16, ASTM B584 C84400
MediaGas, Steam, Water
Nominal Size1
Operator TypeLever Handle
Orifice Size0.87
Packing MaterialMPTFE
Port TypeStandard
Pressure Rating150 psi WSP, 600 psi CWP
Seal MaterialPTFE
Seat MaterialRPTFE
Series70-100 Series
Softgoods MaterialMPTFE/PTFE/RPTFE
Stem MaterialBrass
Temperature Rating500
Top to Inlet Center2-1/4
Trim MaterialBrass/PTFE/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)7.45" x 2.76" x 4.43"
Additional Information
ARRA Compliant|CRN OC10908.5C|MSS-SP-110
Features & Benefits
- Premium materials and heavy-duty construction Adjustable stem packing gland Blowout-proof stem 100% factory tested Chromium-plated ball
Marketing Information
The Apollo® 70 Series is the most widely used general-purpose bronze ball valve on the market today. The 70-100 model is a two-piece standard port ball valve featuring FNPT connections. Cast and machined in Apollo® South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo® 70-100 Series 70-105-57 Ball Valve With Oxygen Cleaned, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
BrandApollo®
MFG #7010557
Keller #686953
