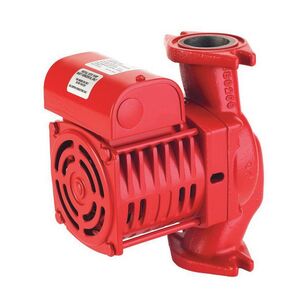

ARMSTRONG E.2 Series E7.2 182202-643 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 1.5 A, 60 Hz, 150 psi Max Pressure
ARMSTRONG E.2 Series E7.2 182202-643 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 1.5 A, 60 Hz, 150 psi Max Pressure
ARMSTRONG Circulator Pump, E.2 Series, Model: E7.2, 0 to 38 gpm Flow Rate, 0 to 26 ft Maximum Head, 125 W, 120 V, 1.5 A, 60 Hz, 150 psi Maximum Pressure, 3400 rpm Motor Speed Rating, 1/6 hp, 1-1/4 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, In-Line Mounting, 230 deg F, Iron, 6.4 in H x 7.1 in W x 4.2 in D, Additional Information: Glass-Filled Noryl Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandARMSTRONG
Additional InformationGlass-Filled Noryl Impeller Material
Amperage Rating1.5
Connection Size1-1/4
Connection TypeFlanged
Dimensions6.4 " H x 7.1 " W x 4.2 " D
Flow Rate0 to 38
Frequency Rating60
HP Rating1/6
IndustryPlumbing
MaterialIron
Maximum Head0 to 26
Maximum Pressure150
ModelE7.2
Motor Speed Rating3400
Mounting Type"-Line
Number of Poles2
Phase1
Power Rating125
SeriesE.2 Series
Temperature Rating230
Voltage Rating120
Features & Benefits
- E.2 Series circulators have been re-designed to improve durability and provide enhanced protection against leakage and water damage to electrical components Larger, stainless steel shaft New sealed, permanently lubricated bearings Bellows-style mechanical seal with silicon carbide wear surfaces New water slinger to protect motor against water intrusion EPDM volute gasket Easy on site seal replacement means you can repair an E.2 Series pump rather than throwing it away and installing a replacement
ARMSTRONG E.2 Series E7.2 182202-643 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 1.5 A, 60 Hz, 150 psi Max Pressure
BrandARMSTRONG
MFG #182202-643
Keller #690680
My Part ##
Last Ordered#
Call for Price / ea
