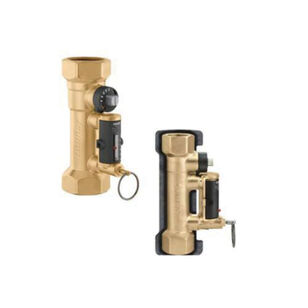

Caleffi 132 Series 132662A QuickSetter Balancing Valve, 1 in, FNPT, 3 to 10 gpm, 150 psi, Brass
Caleffi 132 Series 132662A QuickSetter Balancing Valve, 1 in, FNPT, 3 to 10 gpm, 150 psi, Brass
Caleffi QuickSetter Balancing Valve, 132 Series, 1 in Nominal, FNPT Connection, 3 to 10 gpm Flow Rate, 150 psi, Brass, Fluids, Gylcol, Water Media, 14 to 230 deg F, 6-1/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$322.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandCaleffi
Connection TypeFNPT
Dimensions6-1/4 " H
Flow Rate3 to 10
IndustryHydronics
MaterialBrass
MediaFluids, Gylcol, Water
Nominal Size1
Pressure Rating150
Series132 Series
Temperature Rating14 to 230
Features & Benefits
- Direct reading of flow rate No sight gauge clouding or scaling Brass valve body and flow meter Rotatable valve for flow rate adjustment Graduated scale flow meter with magnetic movement flow rate indicator Chrome-plated brass ball control stem PTFE ball seal seat, PSU control stem guide, EPDM seals, brass body, brass EN 12164 CW614N headwork, brass, chrome-plated bypass valve stem, stainless steel springs, PSU flow meter float and indicator cover 50% max glycol +/- 10% accuracy 90 deg control stem angle of rotation 1/2 to 1-1/4 in required operating wrench 1/2 to 2 in FNPT threaded connections Closed cell expanded PEX insulation material 25/64 in THK 1.9 lb/cu-ft inner part density 3.1 lb/cu-ft outer part density 0.263 Btu at 32 deg F, 0.312 Btu at 104 deg F With flow meter
Documents
Caleffi 132 Series 132662A QuickSetter Balancing Valve, 1 in, FNPT, 3 to 10 gpm, 150 psi, Brass
BrandCaleffi
MFG #132662A
Keller #691673
