1 1/2 IN Cast Steel Wye Pattern Strainer Flange Tapped Retainer Cap Closure Plug
1 1/2 IN Cast Steel Wye Pattern Strainer Flange Tapped Retainer Cap Closure Plug
1 1/2 IN Cast Steel Wye Pattern Strainer Flange Tapped Retainer Cap Closure Plug
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,107.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Blowdown Outlet Connection TypeFlanged Joint
Blowdown Outlet Size0.5''
Body PatternWye
Depth11"
Flange MaterialSteel
Gasket MaterialPTFE
Height12"
IndustryPlumbing
Inlet Connection Size1-1/2"
Inlet Connection Size Metric40 mm
Inlet Connection TypeFlanged Joint
MaterialSteel
Outlet Connection Size1-1/2"
Outlet Connection TypeFlanged Joint
Plug MaterialCarbon Steel
Retainer Cover MaterialCast Steel
Retainer Cover TypeTapped with Closure Plug
Screen MaterialStainless Steel
Screen Size1/32''
Series77F-CSI
StrainerYes
Strainer TypeWye
Weight14 lbs.
Width5"
Wog Rating285 psi
Shipping Dimensions (L x W x H)11" x 5" x 12"
Features & Benefits
- Wye pattern
- Steel body
- 304 stainless steel screen
- Flanged connections
Documents
Marketing Information

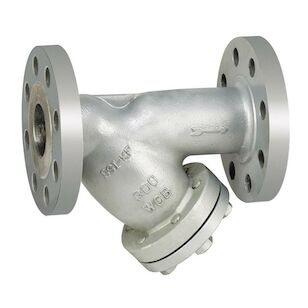

This steel flanged wye pattern strainer, 1 1/2 inch Watts Model 77F-CSI, is used in liquid and steam applications. The Strainer is furnished with blow off connections and machined seat that allows the screen to be self aligning and assures a perfect fit. The Strainer comes with a bolted screen retainer cover and non-asbestos gasket. The screen retainer cover is tapped for strainers clean out by removing the blow off plug or opening a blow off valve piped to the blow off outlet.
1 1/2 IN Cast Steel Wye Pattern Strainer Flange Tapped Retainer Cap Closure Plug
BrandWATTS®
MFG #0823019
Keller #693747
My Part ##
Last Ordered#
$5,107.00Â /Â ea
