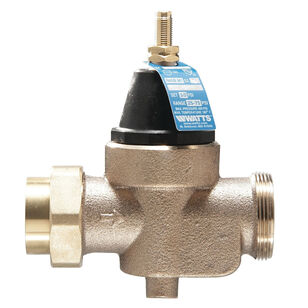

WATTS® LFN45BM1-U Series 0009490 Water Pressure Reducing Valve, 1 in Nominal, FPT, 400 psi, 33 to 180 deg F
WATTS® LFN45BM1-U Series 0009490 Water Pressure Reducing Valve, 1 in Nominal, FPT, 400 psi, 33 to 180 deg F
WATTS® Water Pressure Reducing Valve, LFN45BM1-U Series, 1 in Nominal, FPT Connection, 400 psi, Water Media, Copper Silicon Body, Elastomer/EPDM/Thermoplastic Softgoods, 33 to 180 deg F, 6-1/4 in H x 5-5/8 in W x 2-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$504.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeFPT
Dimensions6-1/4 " H x 5-5/8 " W x 2-1/4 " D
MediaWater
Nominal Size1
Pressure Rating400
SeriesLFN45BM1-U Series
Softgoods MaterialElastomer/EPDM/Thermoplastic
Temperature Rating33 to 180
Warranty1 Year Limited
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|Military Standard MIL-V-18146B Type I|IAPMO Approved|Southern Standard Plumbing Code Certified
Features & Benefits
- Integral stainless steel strainer removable for cleaning Sealed spring cage for accessible outdoor or waterworks pit installations Serviceable in line Thermoplastic seat and cage
Marketing Information
This 1/2 in water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free brass body construction, NPT threaded union inlet and FNPT outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® LFN45BM1-U Series 0009490 Water Pressure Reducing Valve, 1 in Nominal, FPT, 400 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009490
Keller #700634
My Part ##
Last Ordered#
$504.00 / ea
