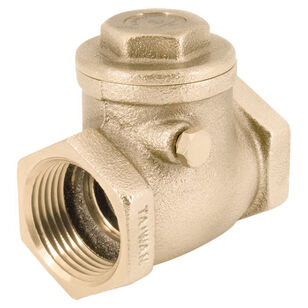

Legend Valve T-451NL Series 105-106NL Swing Check Valve, 1-1/4 in, FNPT, Lead-Free, Brass
Legend Valve T-451NL Series 105-106NL Swing Check Valve, 1-1/4 in, FNPT, Lead-Free, Brass
Legend Valve Swing Check Valve, T-451NL Series, 1-1/4 in Nominal, FNPT Connection, 200 psi, Full Port, Water Media, 3.19 in Inlet to Outlet Length, 2.07 in Top to Inlet Center, Brass Body, Brass Disc, Brass Trim, Fiber Softgoods, Lead-Free, Additional Information: 47 Cv Flow Coefficient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$83.69Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Additional Information47 Cv Flow Coefficient
Body MaterialBrass
Connection TypeFNPT
Disc MaterialBrass
IndustryPlumbing
Inlet to Outlet Length3.19
Lead-FreeYes
MediaWater
Nominal Size1-1/4
Port TypeFull
Pressure Rating200
SeriesT-451NL Series
Softgoods MaterialFiber
Top to Inlet Center2.07
Trim MaterialBrass
Warranty5 Year
Shipping Dimensions (L x W x H)5.8" x 5.5" x 10.4"
Additional Information
ANSI/ASME B1.20.1, B16.18|NSF/ANSI 61, 372
Features & Benefits
- Durable, full-pattern cast brass body Large, integral seat and disc sealing surfaces Forged brass hinge pin assures smooth, non-binding disc operation T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
Documents
Legend Valve T-451NL Series 105-106NL Swing Check Valve, 1-1/4 in, FNPT, Lead-Free, Brass
BrandLegend Valve
MFG #105-106NL
Keller #701265
My Part ##
Last Ordered#
$83.69Â /Â ea
