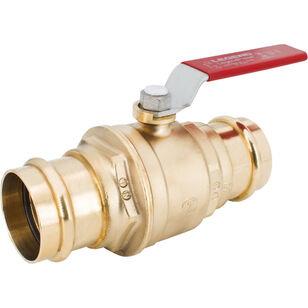

Legend Valve LegendPress® P-200NL Series 101-008NL Ball Valve, 2 in, Press, Brass, 400 psi
MFG #101-008NL
Item #701271
Mfr. Part #101-008NL
UPC #662545082172
more info
Legend Valve LegendPress® Ball Valve, P-200NL Series, 2 in Nominal, Press Connection, Full Port, 400 psi, Water Media, 2 in Orifice, 7.33 in Inlet to Outlet Length, 3.08 in Top to Inlet Center, Handle Operator, Material Standard: ASTM CW510L C28500, ASTM A510 G10060, Brass Body, TFM PTFE Seat, Brass Stem, Brass/TFM PTFE Trim, Steel Handle, Brass Ball, EPDM/TFM PTFE Softgoods, Lead-Free, 230 deg F, 4.76 in H x 9.15 in L, Domestic/Import: Domestic
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$240.95 / ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandLegend Valve
Ball MaterialBrass
Body MaterialBrass
Connection TypePress
Dimensions4.76 " H x 9.15 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length7.33
Lead-FreeYes
Material StandardASTM CW510L C28500, ASTM A510 G10060
MediaWater
Nominal Size2
Operator TypeHandle
Orifice Size2
Port TypeFull
Pressure Rating400
Seat MaterialTFM PTFE
SeriesP-200NL Series
Softgoods MaterialEPDM/TFM PTFE
Stem MaterialBrass
Temperature Rating230
Top to Inlet Center3.08
Trim MaterialBrass/TFM PTFE
Shipping Dimensions (L x W x H)11" x 22.1" x 8.9"
Additional Information
ANSI/ASME B16.51|MSS-SP-110|NSF/ANSI 61
Features & Benefits
Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing
Deeper tubing sockets and dual O-ring at each connection, provide extra stability during the pressing process as well as enhanced sealing
Press-type end connections eliminate the need for soldering, reducing labor and materials costs and eliminating the fire hazard associated with the process
Compatible with commercially available VUS profile jaws
