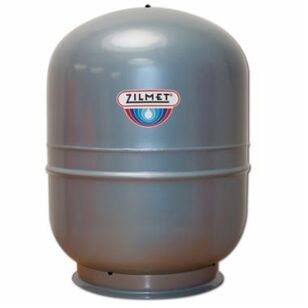

ZILMET ZHT80 EXP TANK 21.1GAL
ZILMET ZHT80 EXP TANK 21.1GAL
Zilmet® Floor-Mounted Hydronic Expansion With Stand, ZHT Series, 21.1 gal Capacity, 3/4 in Connection, NPT Connection, 15.3 gal Acceptance Factor, SBR Diaphragm, Carbon Steel, Finish: Epoxy Polyester-Coated, Gray, 90 psig, 14 to 210 deg F, 17.7 in Dia x 23.9 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$727.95 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZilmet®
Acceptance Factor15.3 gal
ApplicationFor hydronic applications
Capacity21.1 gal
ColorGray
Connection Size3/4"
Connection TypeNPT
Diaphragm MaterialSBR
Dimensions17.7" Dia x 23.9" H
FinishEpoxy Polyester-Coated
IndustryPlumbing
MaterialCarbon Steel
Pressure Rating90 psig
Prop 65 WarningYes
SeriesZHT Series
Temperature Rating14 to 210 deg F
Warranty5 Year Limited
Shipping Dimensions (L x W x H)18" x 25" x 18"
Features & Benefits
- Each tank is factory leak tested to ensure tank integrity
- Certified synthetic SBR rubber diaphragm
- All diaphragms designed to maximize draw down
- MIG welding eliminates interior rough spots and sharp edges
- Welded side outlet allows easy and quick installation
- Low profile tank design with full membrane depth eliminates stretching of diaphragm, providing increased life cycle
- External baked on epoxy-polyester coating provides a durable, appliance like finish
- Protected pre-charge valve eliminates potential leak path
Marketing Information
Zilmet® floor-mounted hydronic expansion tanks feature a compact design and a seamless diaphragm that never stretches or creases. Each tank is leak tested and all diaphragms are designed to maximize draw down. These tanks have a welded side outlet that allows easy and quick installation. All tanks for use with a boiler in a non-potable, hydronic application.
ZILMET ZHT80 EXP TANK 21.1GAL
BrandZilmet®
MFG #ZHT80
