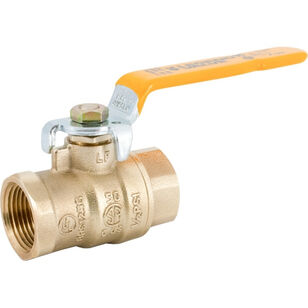

Legend Valve 101-065NL Ball Valve, 1 in, FNPT, Brass, 150 psi WSP, 600 psi CWP
Legend Valve 101-065NL Ball Valve, 1 in, FNPT, Brass, 150 psi WSP, 600 psi CWP
Legend Valve Ball Valve, 1 in Nominal, FNPT Connection, Full Port, 150 psi WSP, 600 psi CWP, 2.88 in Inlet to Outlet Length, 2.05 in Top to Inlet Center, 48 Cv Flow Coefficient (Cv), Material Standard: ASTM UNS C46400, Brass Body, PTFE Seat, Brass Stem, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, Additional Information: Model T-1002NL
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$53.73Â /Â ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Additional InformationModel T-1002NL
Ball MaterialBrass
Body MaterialBrass
Connection TypeFNPT
Flow Coefficient (Cv)48
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.88
Lead-FreeYes
Material StandardASTM UNS C46400
Nominal Size1
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi CWP
Seat MaterialPTFE
Stem MaterialBrass
Top to Inlet Center2.05
Shipping Dimensions (L x W x H)11.2" x 8.4" x 14"
Additional Information
ANSI Z21.15|ANSI/ASME B1.20.1, B16.18, B16.33, B16.44|MSS SP-110|NSF/ANSI 61, 372|UL 2J73
Documents
Marketing Information
Bottom-loaded, blowout-proof stem with PTFE packing gland and forged brass packing nut. Durable PTFE seats. Self-cleaning forged brass ball is chrome-plated, to resist scale build-up.
Legend Valve 101-065NL Ball Valve, 1 in, FNPT, Brass, 150 psi WSP, 600 psi CWP
BrandLegend Valve
MFG #101-065NL
Keller #701537
My Part ##
Last Ordered#
$53.73Â /Â ea
