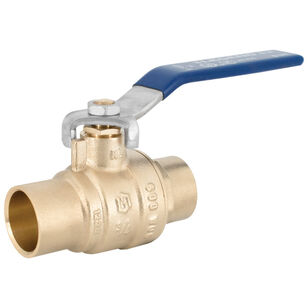

Legend Valve S-2000NL Series 101-423NL Ball Valve, 1/2 in, Solder, Brass, 150 psi WSP, 600 psi CWP
Legend Valve S-2000NL Series 101-423NL Ball Valve, 1/2 in, Solder, Brass, 150 psi WSP, 600 psi CWP
Legend Valve Ball Valve, S-2000NL Series, 1/2 in Nominal, Solder Connection, Full Port, 150 psi WSP, 600 psi CWP, Gas, Water Media, 2.05 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, 0.57 in Opening, Lever Handle Operator, Material Standard: ANSI Z21.15, ANSI/ASME B16.33, ASME B16.44, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 2.05 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24.95Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
ApplicationFor new or repair installations of plumbing or gas systems
Ball MaterialBrass
Body MaterialBrass
Connection TypeSolder
Dimensions2.05 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.05
Lead-FreeYes
Material StandardANSI Z21.15, ANSI/ASME B16.33, ASME B16.44
MediaGas, Water
Nominal Size1/2
Opening Size0.57
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi CWP
Seat MaterialPTFE
SeriesS-2000NL Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Top to Inlet Center1.66
Trim MaterialBrass/PTFE
Shipping Dimensions (L x W x H)13.6" x 12.5" x 7.1"
Additional Information
ANSI Z21.15|ANSI/ASME B16.33|ASME B16.44|CSA 3.16|MSS-SP-110|NSF/ANSI 14, 61, 372
Features & Benefits
- Dezincification-resistant (DZR) forged brass construction resists corrosion from exposure to a wide variety of water conditions Bottom loaded blowout-proof stem features a dual-seal PTFE packing and EPDM rubber O-ring design, assuring positive sealing under a multitude of conditions Self-cleaning chrome-plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions Multiple certifications make the 2000NL Series a multi-purpose valve, suitable for new or repair installations of plumbing or gas systems
Documents
Legend Valve S-2000NL Series 101-423NL Ball Valve, 1/2 in, Solder, Brass, 150 psi WSP, 600 psi CWP
BrandLegend Valve
MFG #101-423NL
