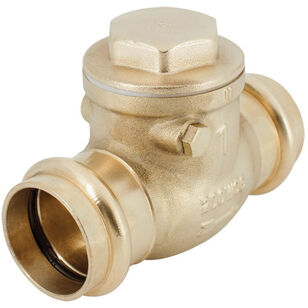

Legend Valve P-451NL Series 105-004NL Swing Check Valve, 3/4 in, Press, Lead-Free, Brass
MFG #105-004NL
Item #701638
Mfr. Part #105-004NL
UPC #662545092775
more info
Legend Valve Swing Check Valve, P-451NL Series, 3/4 in Nominal, Press Connection, 200 psi, 250 deg F, Full Port, Water Media, 3.27 in Inlet to Outlet Length, 1.56 in Top to Inlet Center, Brass Body, Brass Disc, Brass Trim, EPDM/PTFE Softgoods, Lead-Free, Additional Information: 15/16 in Insertion Depth
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$66.38Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandLegend Valve
Additional Information15/16 " Insertion Depth
Body MaterialBrass
Connection TypePress
Disc MaterialBrass
IndustryPlumbing
Inlet to Outlet Length3.27
Lead-FreeYes
MediaWater
Nominal Size3/4
Port TypeFull
Pressure Rating200
SeriesP-451NL Series
Softgoods MaterialEPDM/PTFE
Temperature Rating250
Top to Inlet Center1.56
Trim MaterialBrass
Shipping Dimensions (L x W x H)6.2" x 5.8" x 10.6"
Additional Information
ANSI/ASME B16.51|NSF/ANSI 61
Features & Benefits
Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing, coiled (annealed) soft copper tubing is not recommended, but can be used if ends are made round
A durable, full-pattern cast brass body resists distortion and maintains sealing integrity after the pressing process
Large, integral seat and disc sealing surfaces assure positive closure
T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
