Legend Valve

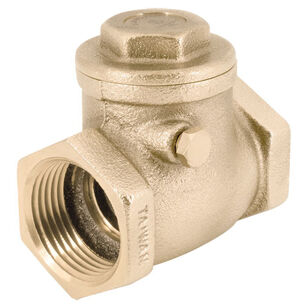

Legend Valve T-451NL Series 105-104NL Swing Check Valve, 3/4 in, FNPT, Lead-Free, Brass
Legend Valve
Legend Valve T-451NL Series 105-104NL Swing Check Valve, 3/4 in, FNPT, Lead-Free, Brass
MFG #105-104NL
Item #701643
Mfr. Part #105-104NL
UPC #662545089713
Legend Valve Swing Check Valve, T-451NL Series, 3/4 in Nominal, FNPT Connection, 200 psi, Full Port, Water Media, 2.36 in Inlet to Outlet Length, 1.56 in Top to Inlet Center, Brass Body, Brass Disc, Brass Trim, Fiber Softgoods, Lead-Free, Additional Information: 18 Cv Flow Coefficient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$36.90Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Additional Information18 Cv Flow Coefficient
Body MaterialBrass
Connection TypeFNPT
Disc MaterialBrass
IndustryPlumbing
Inlet to Outlet Length2.36
Lead-FreeYes
MediaWater
Nominal Size3/4
Port TypeFull
Pressure Rating200
SeriesT-451NL Series
Softgoods MaterialFiber
Top to Inlet Center1.56
Trim MaterialBrass
Warranty5 Year
Shipping Dimensions (L x W x H)6.7" x 4.2" x 8.8"
Additional Information
ANSI/ASME B1.20.1, B16.18|NSF/ANSI 61, 372
Features & Benefits
- Durable, full-pattern cast brass body Large, integral seat and disc sealing surfaces Forged brass hinge pin assures smooth, non-binding disc operation T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
Documents
Legend Valve T-451NL Series 105-104NL Swing Check Valve, 3/4 in, FNPT, Lead-Free, Brass
