LSP OBFS-8140-LL WH FRSTOP ICMKR
LSP OBFS-8140-LL WH FRSTOP ICMKR

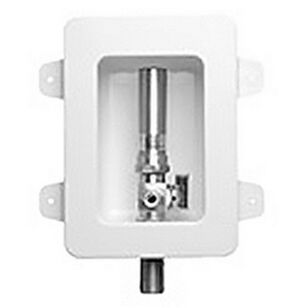

LSP™ FireStop™ Ice Maker Box With Hammer Arrester, 1/2 x 1/4 in Connection, Uponor PEX x Compression Connection, Quarter-Turn Ball Valve, 6-7/8 in Box Width, 2-13/16 in Box Depth, 5-11/16 in Box Height, PVC Box, White Box, 5-1/4 in Faceplate Width, 7-5/16 in Faceplate Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$134.71 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLSP™
Box ColorWhite
Box Depth2-13/16
Box Height5-11/16
Box MaterialPVC
Box Width6-7/8
Connection Size1/2 x 1/4
Connection TypeUponor PEX x Compression
Faceplate Height7-5/16
Faceplate Width5-1/4
Valve TypeQuarter-Turn Ball
Additional Information
ASME A112.12.1|ASSE 1010|ASTM E814|CAN/ULC S115|CSA B125.1|IAPMO Listed|NSF/ANSI 61
Features & Benefits
- Rounded corners and compact size Deep faceplate accepts up to two sheets of 5/8 in dry wall Mounts on side of stud and can be installed upside down, vertically or horizontally Lead-free EZ-turn quarter ball valve includes long-lasting O-rings, PTFE seats and durable brass resists cracking/corrosion and allows for fingertip control of water flow
Documents
Marketing Information
The fire-rated ice maker box is similar in design to the mini ice maker, with a modern look and compact profile, but is constructed from fire-resistant PVC, with a factory-mounted intumescent pad. FireStop™ boxes are Warnock Hersey Certified to ASTM E-814 and CAN/ULC S115 1 hr and 2 hr listings. Suitable for use on wood or metal studs and with all pipe types.
LSP OBFS-8140-LL WH FRSTOP ICMKR
BrandLSP™
MFG #OBFS-8140-LL
Keller #702083
My Part ##
Last Ordered#
$134.71 / ea
