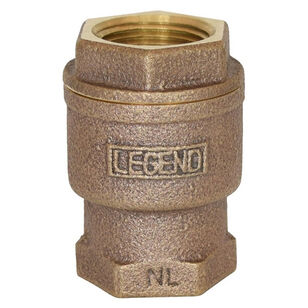

Legend Valve 105-446NL In-Line Check Valve, 1-1/4 in, FNPT, Lead-Free, Bronze
Legend Valve 105-446NL In-Line Check Valve, 1-1/4 in, FNPT, Lead-Free, Bronze
Legend Valve In-Line Check Valve, 1-1/4 in Nominal, FNPT Connection, 125 psi WSP, 250 psi CWP, 200 deg F, 3.11 in Inlet to Outlet Length, Bronze Body, Buna-N Seat, Buna-N Disc, Lead-Free, 2.16 in W, Additional Information: Model T-455NL
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$114.36Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Additional InformationModel T-455NL
Body MaterialBronze
Connection TypeFNPT
Dimensions2.16 " W
Disc MaterialBuna-N
Inlet to Outlet Length3.11
Nominal Size1-1/4
Pressure Rating125 psi WSP, 250 psi CWP
Seat MaterialBuna-N
Temperature Rating200
Shipping Dimensions (L x W x H)12.8" x 10.4" x 14.8"
Additional Information
ANSI/ASME B1.20.1|ANSI/ASME B16.18|NSF/ANSI 372|NSF/ANSI 61
Features & Benefits
- Durable Heavy wall cast bronze design is ideal for commercial or industrial applications Spring loaded silent closure operation The 1/2 lb cracking pressure spring rate permits faster low-pressure opening without sacrificing quick closure in backflow scenarios Bore guided stem poppet minimizes over travel Reducing the chance of premature wear and failure Can be installed in vertical and horizontal positions Not for reciprocating air compressor installations
Documents
Legend Valve 105-446NL In-Line Check Valve, 1-1/4 in, FNPT, Lead-Free, Bronze
BrandLegend Valve
MFG #105-446NL
Keller #702549
My Part ##
Last Ordered#
$114.36Â /Â ea
