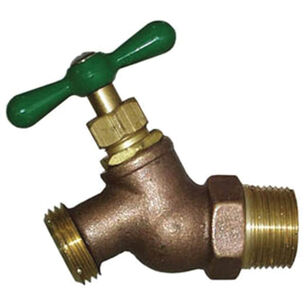

Legend Valve T-533HP Series 107-267NL Hose Bibb, 1/2 in, MNPT, Brass
Legend Valve T-533HP Series 107-267NL Hose Bibb, 1/2 in, MNPT, Brass
Legend Valve Hose Bibb, T-533HP Series, 1/2 in Nominal, MNPT Connection, 125 CWP, Water Media, 2-1/2 Turn Actuator, 2.87 in Inlet to Outlet Length, Brass Body, NBR Seat, Brass Stem, Brass/Graphite Packing, Zinc Handle, Polyacetal Resin Softgoods, T-Handle Operator, Material Standard: ASTM C87850, Lead-Free, 2.87 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$26.93Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Actuator Type2-1/2 Turn
Body MaterialBrass
Connection TypeMNPT
Dimensions2.87 " L
Handle MaterialZinc
Inlet to Outlet Length2.87
Material StandardASTM C87850
MediaWater
Nominal Size1/2
Operator TypeT-Handle
Packing MaterialBrass/Graphite
Pressure Rating125
Seat MaterialNBR
SeriesT-533HP Series
Softgoods MaterialPolyacetal Resin
Stem MaterialBrass
Shipping Dimensions (L x W x H)4.3" x 3.7" x 9.4"
Additional Information
NSF/ANSI 61-G
Features & Benefits
- Lead-free design is suitable for all no-lead potable water installation, in full compliance of all no-lead plumbing laws Larger, heavy-duty body, bonnet, stem and handle are designed for frequent use commercial or residential water applications Oversized hose threaded outlet with extra thread, provides a positive seal connection between valve and hose end All sizes accept 3/4 in hose thread-mounted vacuum breakers, including our model T-553, T-553C, T-554, T-555 and T-556 No kink body design angles the attached hose outward, reducing the possibility of kinking unreinforced hose types Six-sided wrench flats at the inlet connection are 45% larger than standard hose bib flats, permitting more tool contact and easier installation Equipped with a stem packing and packing nut design, which are superior to packless bonnet stem seal designs Heavy pattern design features include uni-directional flow, 2-1/2-turn operation and large waterways
Documents
Legend Valve T-533HP Series 107-267NL Hose Bibb, 1/2 in, MNPT, Brass
BrandLegend Valve
MFG #107-267NL
Keller #702605
