NIBCO S58580LF-2IN BRZ BL VLV
NIBCO S58580LF-2IN BRZ BL VLV

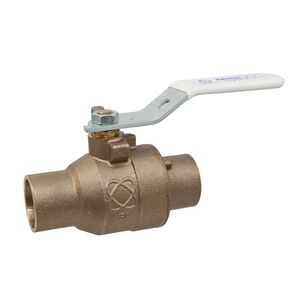

NIBCO® Ball Valve, 2 in Nominal, Female Solder Connection, Full Port, 600 psi, 6.02 in Inlet to Outlet Length, 3.56 in Top to Inlet Center, 2 in Opening, Lever Handle Operator, Material Standard: ASTM B16, ASTM B371, ASTM B584, ASTM B584, Silicon Bronze Alloy Body, PTFE Seat, Silicon Bronze Alloy Stem, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, 300 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$696.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialSilicon Bronze Alloy
Connection TypeFemale Solder
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length6.02
Lead-FreeYes
Material StandardASTM B16, ASTM B371, ASTM B584, ASTM B584
Nominal Size2
Opening Size2
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seat MaterialPTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating300
Top to Inlet Center3.56
Warranty5 Year Limited
Additional Information
cUPC Listed|IAPMO Z1157 Listed|MSS SP-110 Certified|NSF/ANSI 61/372 Certified
Features & Benefits
- Silicone performance bronze™ body, ball and stem Blowout-proof stem Standard lever handle, locking lever, memory stop, extended lever, round and wing NIBCO® HydraPure® lead-free markings on handle and body Solder end connections
Documents
Marketing Information
The NIBCO® ball valve is made of lead-free silicon performance bronze™ alloy and has achieved the stringent NSF/ANSI 61 section 8 (Commercial Hot) and NSF/ANSI 372 listings. The two piece valve provides bubble tight shut-off at 600 psi and is dezincification-resistant. The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball and is ideal for use in applications that deliver water for human consumption including residential and commercial construction. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two piece valve features threaded ends for easy installation. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO S58580LF-2IN BRZ BL VLV
BrandNIBCO®
MFG #NJ831XD
Keller #702793
