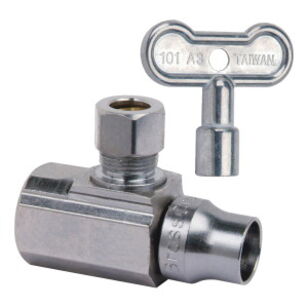

BrassCraft® KTSR17X C Ball Stop Valve With Loose Key, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body
BrassCraft® KTSR17X C Ball Stop Valve With Loose Key, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body
BrassCraft® Ball Stop Valve With Loose Key, 1/2 x 3/8 in Nominal, FIP x Compression Connection, 125 psi, Brass/PTFE Trim, PTFE/Rubber Softgoods, Brass Body, Zinc Handle, Quarter-Turn Handle Actuator, Finish: Chrome-Plated, 40 to 180 deg F, 2.2 in L, Domestic/Import: Domestic, Additional Information: 2.2 in L Inlet to Outlet, 1.2 in Top to inlet Center, Angled Configuration, Brass Stem, Lead-Free, PTFE Seat, Water Media, Water Service
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$64.72 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBrassCraft®
Actuator TypeQuarter-Turn Handle
Additional Information2.2 " L Inlet to Outlet, 1.2 " Top to inlet Center, Angled Configuration, Brass Stem, Lead-Free, PTFE Seat, Water Media, Water Service
ApplicationFor use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115 deg F
Body MaterialBrass
Connection TypeFIP x Compression
Dimensions2.2 " L
Domestic/ImportDomestic
FinishChrome-Plated
Handle MaterialZinc
Nominal Size1/2 x 3/8
Pressure Rating125
Softgoods MaterialPTFE/Rubber
Temperature Rating40 to 180
Trim MaterialBrass/PTFE
Additional Information
ASME A112.18.1|cUPC Certified|CSA B125.1|IAPMO Approved|NSF/ANSI 372, NSF/ANSI/CAN 61
Features & Benefits
- Machined one-piece brass body provides strength, durability and long-lasting performance Precision machined brass ball to provides smoother operation without freeze-ups even after long periods of non-use Blowout-proof, plated stem is assembled from the inside with double O-ring to help ensure safe, reliable performance Easy-to-remove handle protects against accidental operation during rough-ins 100% leak tested to ensure reliable, leak-free performance
BrassCraft® KTSR17X C Ball Stop Valve With Loose Key, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body
BrandBrassCraft®
MFG #KTSR17X C
Keller #703007
My Part ##
Last Ordered#
$64.72 / ea
