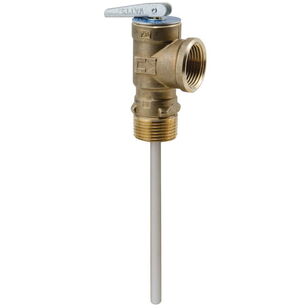

WATTS® LF100XL Series 0121342 Temperature and Pressure Relief Valve, 3/4 in Nominal, FNPT x MNPT, 125 psi, 210 deg F
WATTS® LF100XL Series 0121342 Temperature and Pressure Relief Valve, 3/4 in Nominal, FNPT x MNPT, 125 psi, 210 deg F
WATTS® Temperature and Pressure Relief Valve, LF100XL Series, 3/4 in Nominal, FNPT x MNPT Connection, 125 psi, Water Media, 1-5/32 in Inlet to Outlet Length, Copper Silicon Alloy Body, 210 deg F, 3-11/64 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$71.25 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor water heater and hot water storage tank
Body MaterialCopper Silicon Alloy
Connection TypeFNPT x MNPT
Dimensions3-11/64 " H
IndustryPlumbing
Inlet to Outlet Length1-5/32
MediaWater
Nominal Size3/4
Pressure Rating125
SeriesLF100XL Series
Temperature Rating210
Warranty1 Year
Additional Information
ANSI Z21.22|ASME Specified|CSA Certified
Features & Benefits
- Protects against excessive temperature and pressure during emergency conditions
Marketing Information
This 3/4 in lead-free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. This 2-in-1 relief valve provides a proven and cost-effective means to protect against excessive temperature and pressure emergency conditions. It features a lead-free copper alloy body with MNPT inlet and FNPT outlet connections, a unique thermostat with special thermo-bonded-coating and test lever.
WATTS® LF100XL Series 0121342 Temperature and Pressure Relief Valve, 3/4 in Nominal, FNPT x MNPT, 125 psi, 210 deg F
BrandWATTS®
MFG #0121342
Keller #703068
My Part ##
Last Ordered#
$71.25 / ea
